Rail Moving Coil Transfer Trolley / Battery Powered Cart For Chemical Plant

Henan Perfect Handling Equipment Co., Ltd.

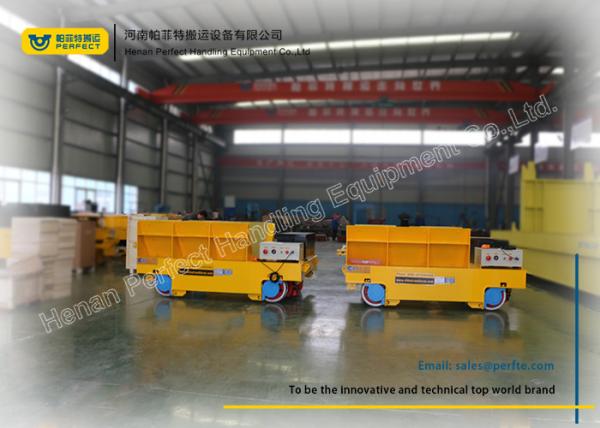

Rail Moving Coil Transfer Trolley / Battery Powered Cart For Chemical Plant

Brand Name : Perfect

Model Number : BXC

Certification : CE, SGS, ISO

Place of Origin : Xinxiang, China

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 70 Sets per month

Delivery Time : 45 days

Packaging Details : The whole cart is package with tarp, and parts will be packed by wood case

Product Name : Rail Moving Coils Transfer Trolley

Power supply : Battery powered

Operation Mode : Pandent and Remote Controller

Running Distance : Unlimited

Capacity : 15 Ton

Application : Coil Transportation

Warranty : 1 year

Color : Yellow, Customized

Wheel Type : Cast steel wheel

Usage : Used for Transport Coils, Paper Colls, etc.

Contact Now

15 Ton Yellow Bay to Bay Transfer Car on Rail Moving Coils Transfer Trolley

Introduction of Rail Moving Coils Transfer Trolley

Our rail moving transfer teolleys are powered by storaged battery. The direct-current machine gets its power from the electric control system, which makes the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if needed. V-shape and roller are mounted on Coil rail transfer trolley to protect the coil from falling down from the Coil rail transfer trolley. The surface of the trolley is made up of high temperature proof materials. And all the parts can work normally

Application Places of Rail Moving Coils Transfer Trolley
We produce a wide range of rail flat cars. They are used in metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, power generation, coal industry, paper mills and many other lines. Our coil transfer carts are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.

Parameters of Rail Moving Coils Transfer Trolley
Model 2t 20t 50t 100t
Rated Load(t) 2 20 50 100
Table Size(mm) Length(L) 2000 4000 5500 6500
Width(W) 1500 2200 2500 2800
Heigth(H) 500 600 700 1000
Wheel Base(mm) 1200 2800 4200 4900
Rail Inner Gauge(mm) 1200 1435 1435 2000
Wheel Diameter(mm) 270 350 500 600
Wheel Quantity 4 4 4 4
Ground Clearance(mm) 50 50 50 75
Running Speed(min) 0-25 0-20 0-20 0-20
Motor Power(kw) 0.8 2.5 5.5 11
Running Distance(m) 25 30 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8
Reference Weight(t) 2.5 5.6 7.8 14.1
Recommended Rail Model P15 P24 P43 QU100
Rail Moving Coil Transfer Trolley / Battery Powered Cart For Chemical Plant
Rail Moving Coil Transfer Trolley / Battery Powered Cart For Chemical Plant
Other Products We Produce
We produce many different kinds of products. Our main products include material transfer carts, coils and pipes transport trolleys, industrial trailers, factory transport equipment, electric warehouse carriages, ladle carts, motorized battery operated transfer vehicle and so on. You can find the one you want from us.
Rail Moving Coil Transfer Trolley / Battery Powered Cart For Chemical Plant

Contact Information

Help you to choose the most suitable cart

Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!

  • What material/cargo are you going to transfer?
  • What load capacity do you want?
  • What kind of ground does the transfer cart operate on? (rails or cement floor)
  • What’s the specification table size ? (length,width and height)
  • How long is the running distance?
